Desk Organizer Installation guide

Assembly guide for the Tray and Wing Desk Organizers: one base, one 30 cm lacquered oak rod with finished ends and three glasses holders.

Install
Desk mounted

View product

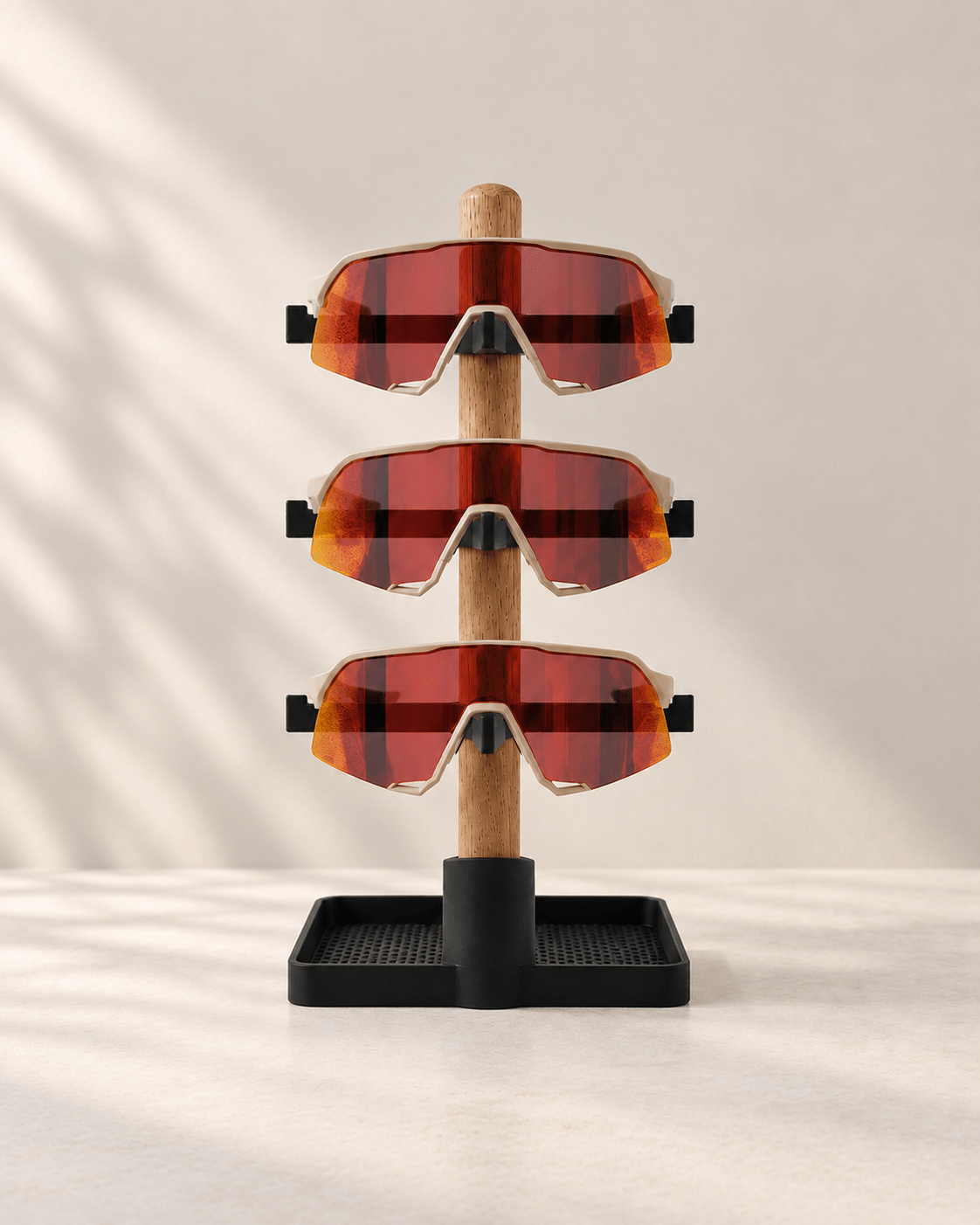

Desk Organizer Tray – oak glasses stand holding three pairs of cycling sunglasses on a 3D-printed storage tray base

Before you start.

Both versions are supplied as loose parts: one Tray or Wing base, one 30 cm rod with a 25 mm diameter, and three glasses holders.

Check the parts below and place the base on a stable, flat surface. No tools are required.

The Tray has storage space and an integrated charging-cable opening. The Wing has a slimmer base.

[ WHAT IS IN THE BOX ]

  • 1 × base in your selected version: Tray or Wing
  • 1 × 30 cm lacquered oak rod with finished ends
  • 3 × glasses holders
[ WARNING ]

Support the base and press the rod along the socket axis. Do not force it vertically against the socket angle. Slide the holders on from the top; do not spread or side-clip them around the rod.

Watch the installation.

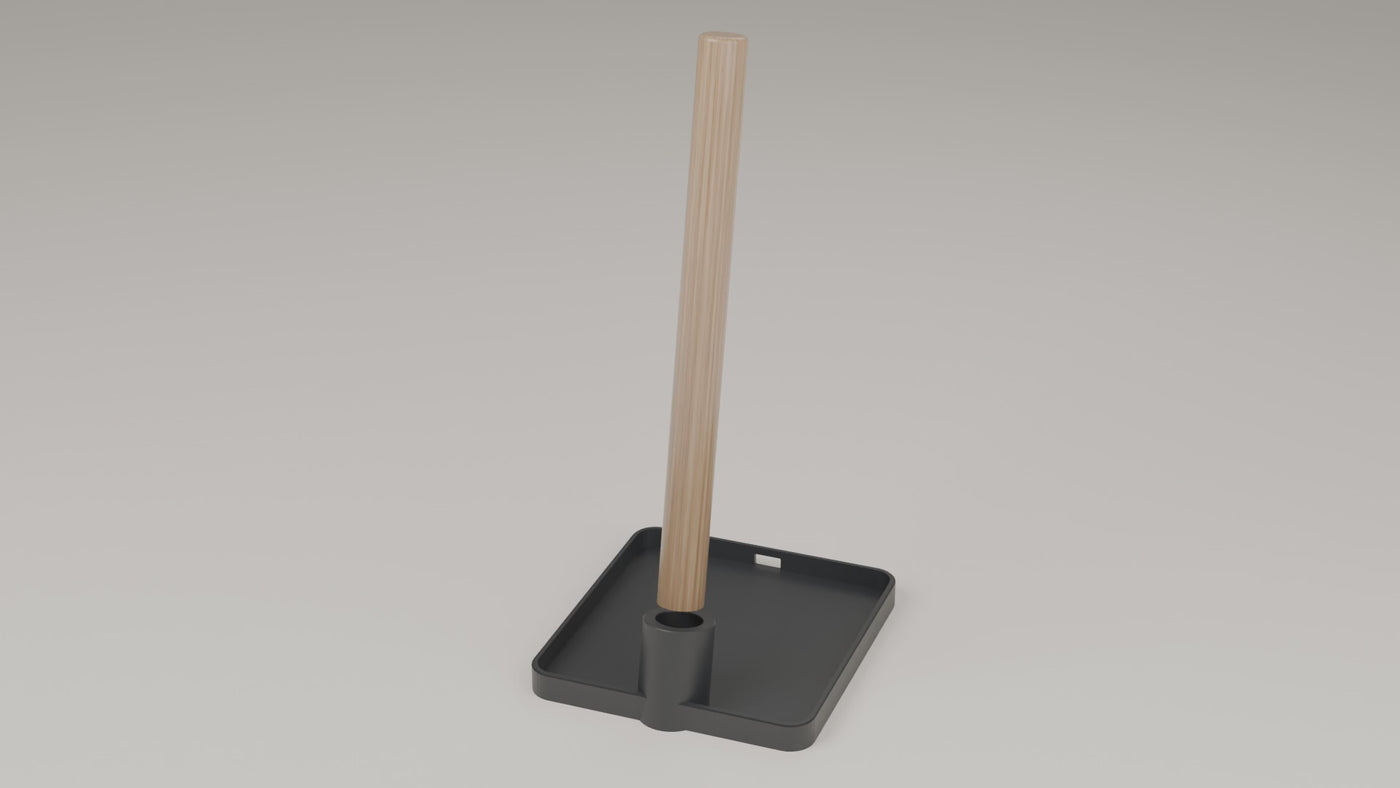

Desk Organizer — Tray

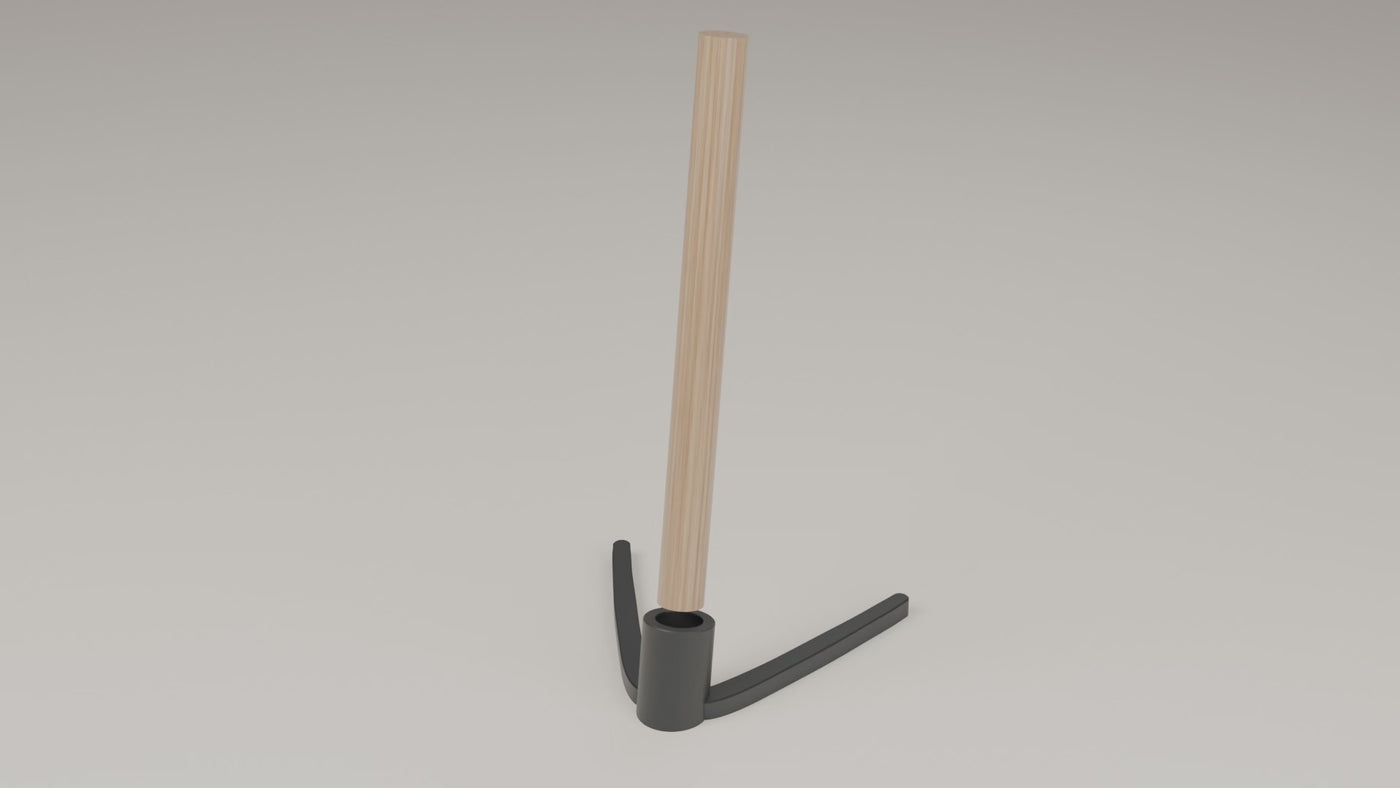

Desk Organizer — Wing

Both versions assemble in the same order. Follow the written steps below.

Follow the steps.

  1. [ 01 / 03 ]

    Check your version and parts

    Identify your Tray or Wing base. Both versions use one 30 cm rod and three glasses holders.

    Place the base on a stable, flat surface and check that all parts are present.

    [ NOTE ]

    The Tray includes storage space and an integrated charging-cable opening.

  2. [ 02 / 03 ]

    Press the rod into the base

    Support the Tray or Wing base firmly. Align the 30 cm rod with the axis of the socket.

    Press along that axis until the rod is fully seated. The socket sets the rod's angle; follow this angle rather than forcing the rod vertically.

    The fit is snug and may require firm, steady pressure. Finish the insertion before adding any holders.

    [ NOTE ]

    The animation slows the final part of the insertion to show the snug fit.

    [ WARNING ]

    Do not bend the rod against the socket or force it in off-axis.

  3. [ 03 / 03 ]

    Slide the holders on from the top

    Align the first holder's opening with the free top end of the rod and slide it down to the lowest position.

    Slide the second holder over the top and down to the middle position. Fit the third holder from the top and leave it at the highest position.

    Leave enough space for each pair of glasses and check that every holder stays in position.

    [ NOTE ]

    Install the lowest holder first, then the middle, then the highest. Remove glasses before adjusting any holder.

    [ WARNING ]

    Do not clip holders on from the side or flex them open around the rod.

Final check.

Complete every check before using the organizer.

Using your product.

Remove your glasses before adjusting a holder. Slide it along the rod to change its height, keeping enough space between all three holders.

To remove a holder, slide it back off the top of the rod. Remove holders above it first if they block the path. Do not pull a holder sideways off the rod.

Tray: use the storage area for small items and the integrated opening to route a charging cable. Wing: the slimmer base uses the same rod and holder assembly method.

Care and adjustments.

Wipe the base, rod and holders with a soft, damp cloth. Avoid aggressive solvents and abrasive cleaners.

Periodically check that the rod remains fully seated and that each holder stays at its chosen height.

Remove glasses before moving the organizer or adjusting a holder. Do not flex the holder opening.

Questions about this product.

What is the difference between the Tray and Wing versions?

The Tray adds storage space and an integrated charging-cable opening. The Wing has a slimmer base. Both use the same 30 cm rod and three glasses holders.

How many pairs of glasses can the Desk Organizer hold?

The Desk Organizer comes with three glasses holders, so it is designed for up to three pairs of glasses. Each holder can be positioned independently along the rod.

Do I need tools to assemble it?

No tools are required. Use steady hand pressure and follow the fitting directions in the installation steps; do not clip the holders on from the side.

Need help?

Send a photo of your setup and tell us where you get stuck.

Contact StudioVelo3D
